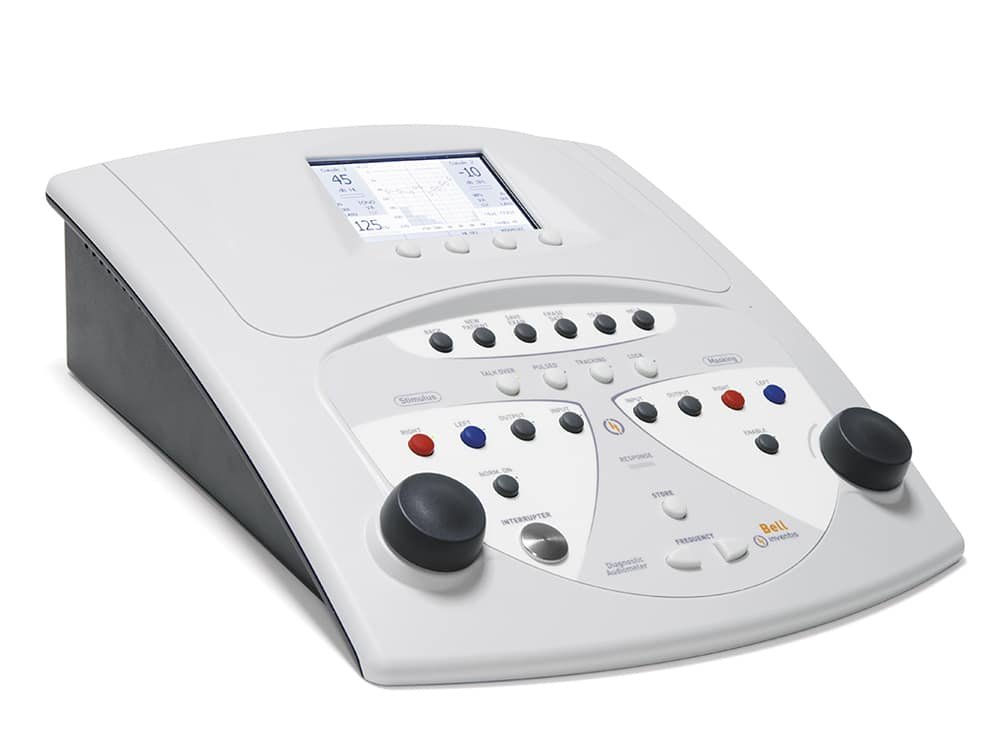

Bell Screening and Diagnostic Audiometer

Bell is a screening and diagnostic audiometer, capable of performing fast and accurate air and bone threshold examinations.
Simple operation, a user-friendly interface and easy portability make Bell the ideal instrument for private clinics, multi-specialist clinics and occupational medicine applications.

The Models:

Inventis Bell screening and diagnostic audiometer is available in two configurations to suit different user needs:

  • Basic (AC only)
  • Plus (AC & BC)
Hybrid Technology:

Inventis Bell screening and diagnostic audiometer features Inventis Hy-Tech: it is possible to decide whether to operate it in the traditional way (stand-alone mode) or control it through the computer.

Noah & Maestro Integration:

Simply connect Bell to a USB port on your computer (no drivers needed), and you can transfer exam results into Maestro or Noah database. With the live view feature, you can have a wide view of the examination in progress on the computer display.

Intensity AC: -10 to 120 dB HL
BC: -10 to 80 dB HL (Plus)
Frequency range 125-8000 Hz
Input Continuous tone, pulsed tone (0.5, 1 and 2 Hz),
warble tone
Masking WN (Plus), NBN
Output AC L+R, BC (Plus), insert masking (opt. Plus only)
Talk over Built-in or external microphone
Test battery PTA, HW autothreshold
Data storage Internal memory for 100 patients
Display type Color graphic
Display size/res 3.75 x 21,1 in / 480 x 272 pixels
Language Multilingual interface
PC interface Bidirectional USB
Modes of oper. Stand-alone and hybrid
Compatible SW Inventis Maestro or Noah with dedicated module
Dimensions 32 x 32 x 9 cm
12.6 x 12.6 x 3.5 in (DxWxH)
Weight Basic without printer 1.82 kg / 4.01 lbs
Plus without printer 1.89 kg / 4.17 lbs
