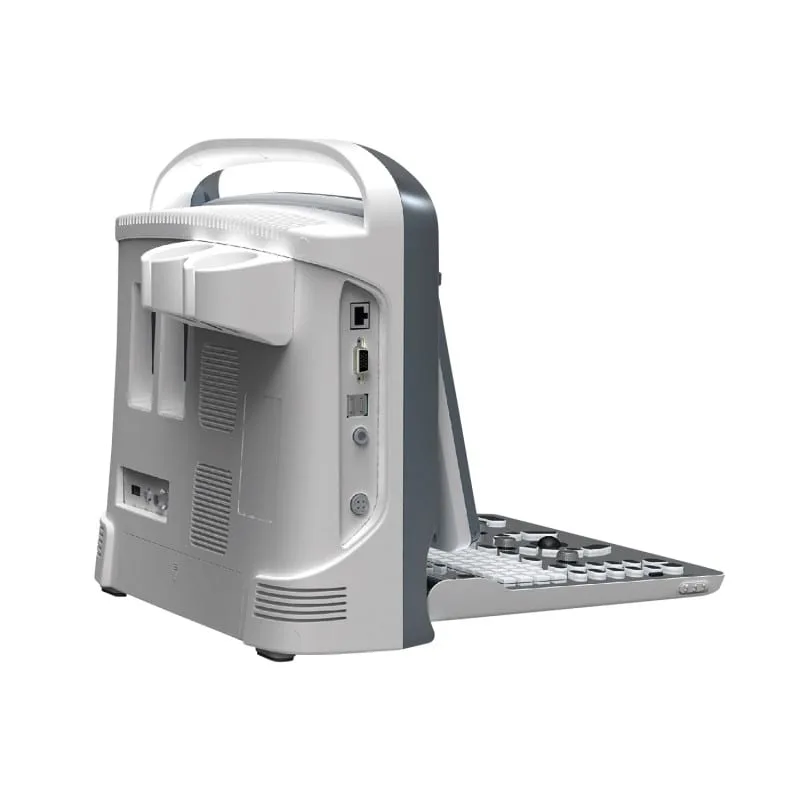

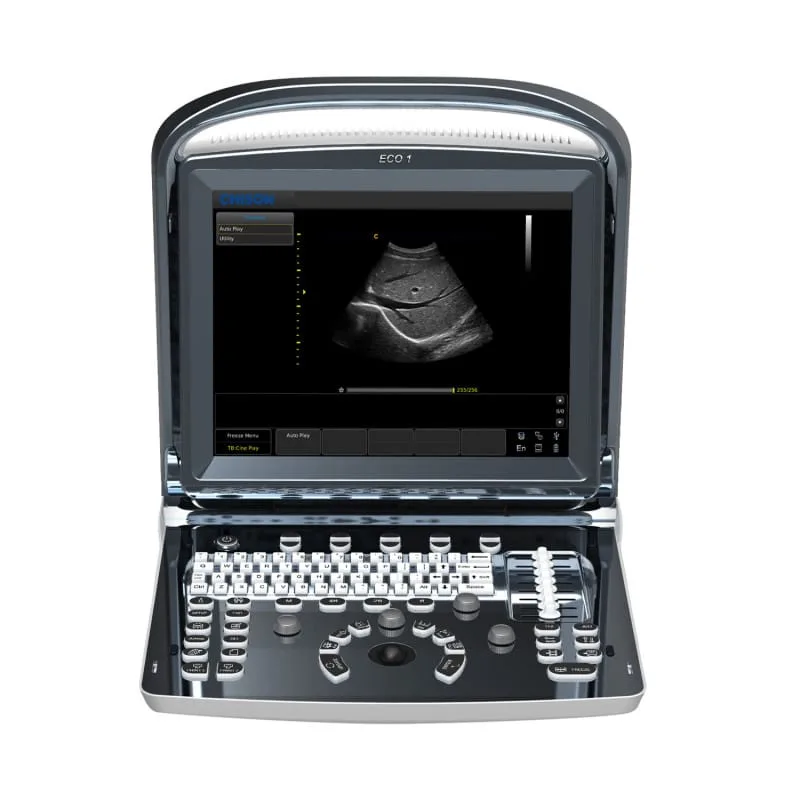

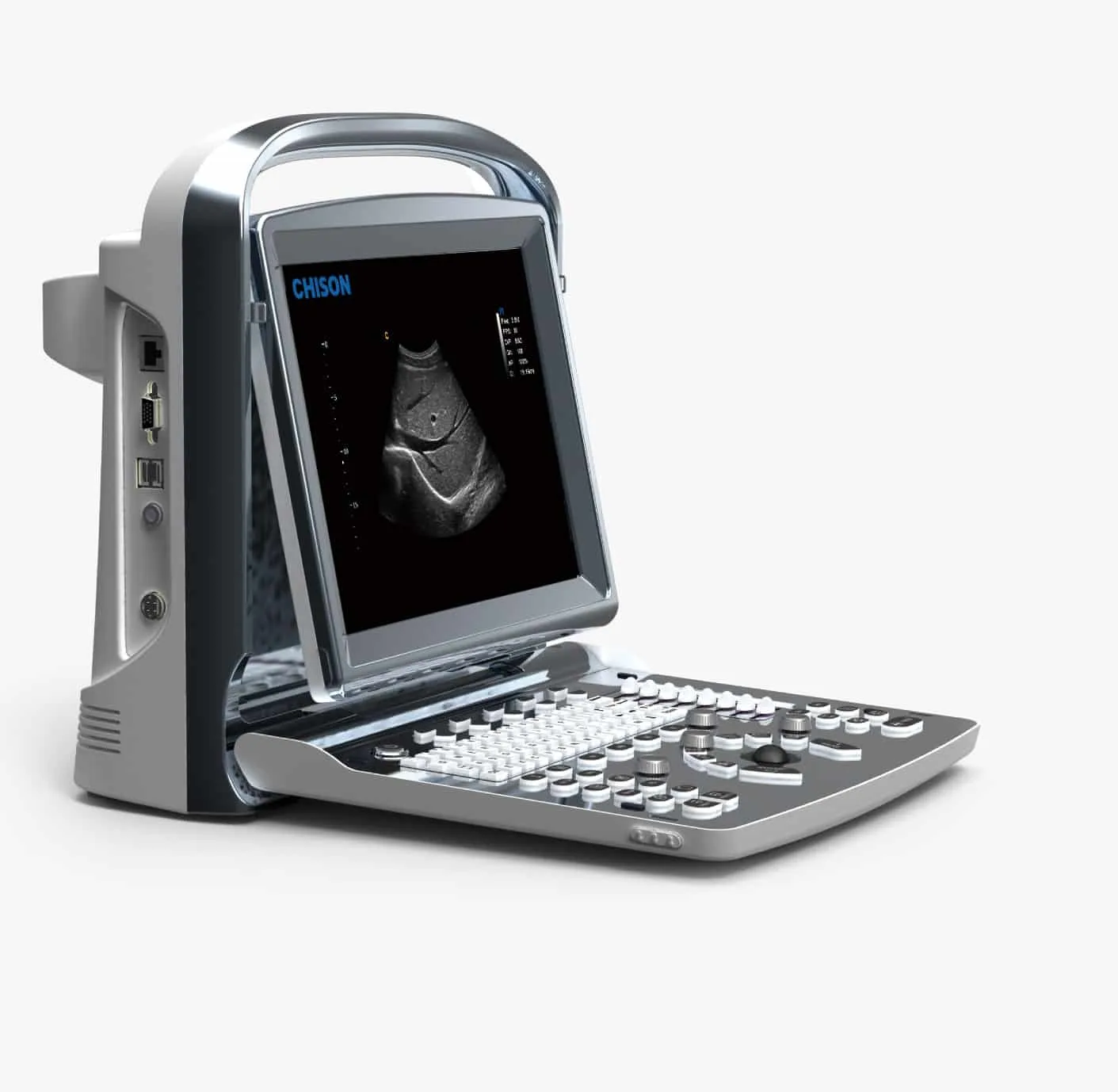

Chison Eco1 Ultrasound Machine

The Chison ECO 1 ultrasound machine is a high quality portable black-and-white ultrasound machine  which comes with a transducer connection, a monitor and a backlit keyboard. It can be used on a wide range of applications with different transducers like convex, linear or micro-convex. The Chison Eco1 Ultrasound Machine is suitable for sonographic examinations of the abdomen, heart, lymph nodes, connective tissue and peripheral vessels. The ultrasound machine is delivered with a convex transducer (C3-A) or a linear transducer (L7M-A).

Product Overview

  • Black-and-white ultrasound system with compact design
  • Delivery includes 1 transducer (the C3-A convex transducer (3.5MHz) or the L7M-A linear transducer)
  • Compatible with different transducers (convex, linear, micro-convex)
  • Real-time zoom (in 4 steps)
  • Working modes: B/2B/4B/M/B&M
  • With measurement and evaluation software
  • Image formats: img and jpg
  • Quick-save key
  • Tiltable 12 inch monitor (up to 30°)
  • Display resolution: 1024 x 768
  • Alphanumerical keyboard with backlight
  • With waterproof keyboard cover
  • Connectors: 1 Ethernet, 1 VGA, 3 USB, 1 video-out-port as well as 1 foot switch connector and 1 power connector
  • Slot for 1 transducer
  • Multilingual software (German, English, Spanish, Italian, Portuguese, Turkish, French, Polish, Czech, Russian, Chinese)
  • Dimensions: 335 x 155 x 350mm (L x W x H)
  • Weight (without transducer): 6kg
  • Delivered with 1 probe and rechargeable battery


  • Cardiology
  • Abdomen
  • Obstetrics
  • Gynaecology
  • Urology
  • Vascular
  • Paediatrics
