Description

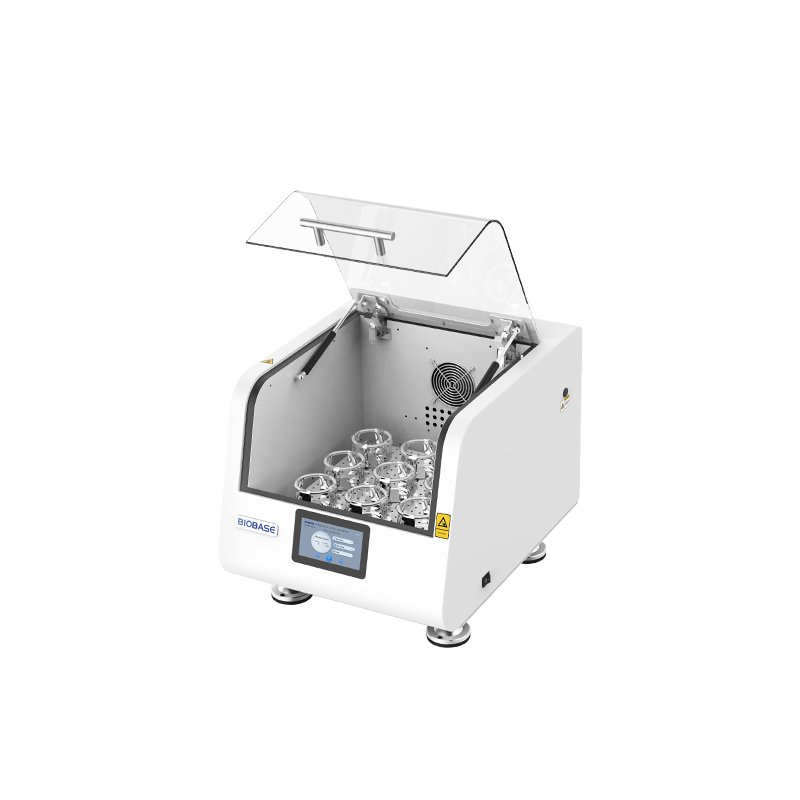

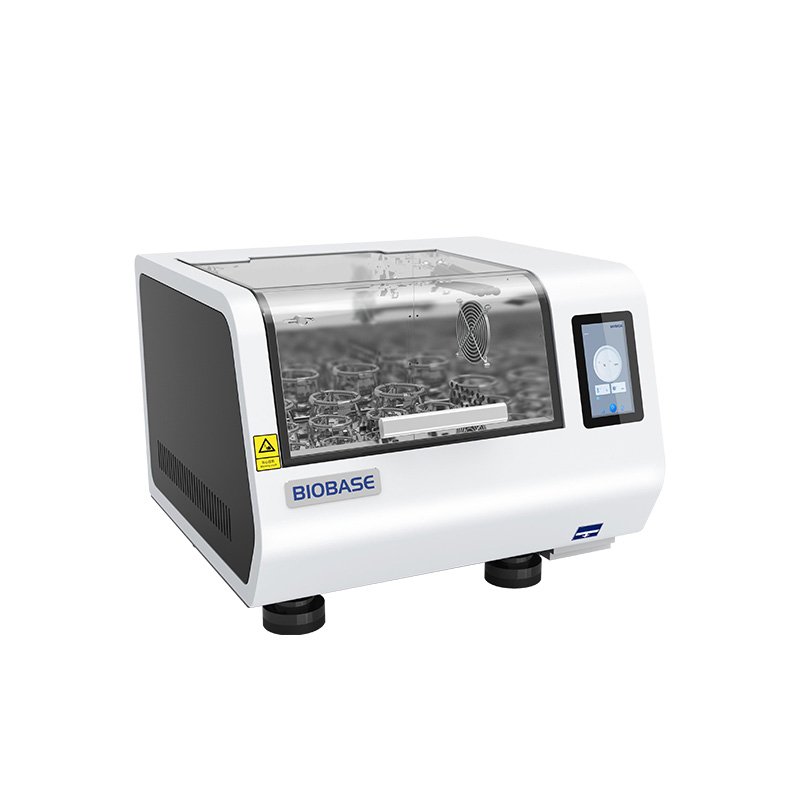

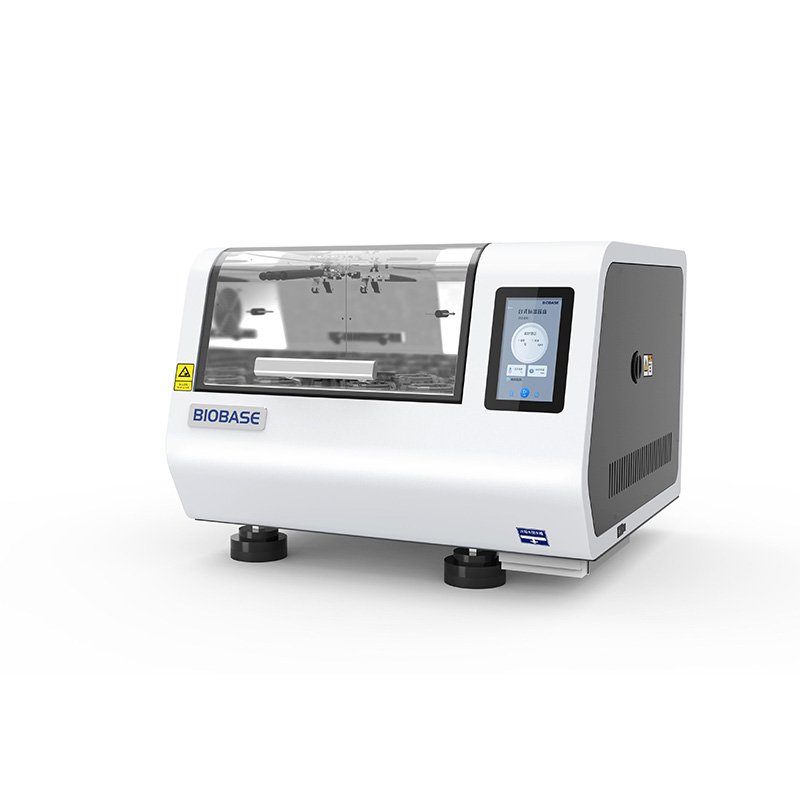

Thermostatic Shaking Incubator
Model: BJPX-ST10, 104L capacity
Brand: Biobase
The Small Capacity Thermostatic Shaking Incubator is a versatile and compact laboratory device designed for the incubation and agitation of samples in a controlled-temperature environment. Ideal for microbiology, cell culture, and molecular biology applications, this incubator ensures precise temperature control and uniform mixing for reliable experimental results.
Features:
1. Visible transparent window, three transparent acrylic cover, can be observed from multiple angles.
2. Large screen is easy to operate, can be simple and intuitive parameter setting.
3. Microcomputer is used to control temperature and oscillation frequency, with timing function; With power failure protection function, it can automatically resume operation after the normal power supply.
4. It has the functions of historical data, curve, alarm record query, data storage and export(U disk), password lock screen protection and Chinese and English switching.
5. Smooth operation, rubber shock absorber foot, ensure that the machine can run smoothly at high speed.
6. Micro switch to open the door to stop, over-temperature alarm, protect the safety of experimental materials.
7. The refrigeration system conforms to the trend of environmental protection, and the new fluorine-free design.
8. Standard of USB for BJPX-ST10/11/20.
Technical Parameters for the different models available:
| Model | BJPX-ST10-L | BJPX-ST11-L | BJPX-ST10 | BJPX-ST11 | BJPX-ST20 |
| Capacity | 22L | 104L | 109L |
| Temperature Control Range | RT+5~60℃ | 4~60℃ |
| Temperature Display Resolution | 0.1℃ |
| Temperature Uniformity | ≤±1℃(at 37℃) |
| Temperature Fluctuation | ≤±0.5℃ |
| Ambient Temperature | 15~35℃ |
| Timing Range | 0~9999min(h) | 0~999h59min |
| Control Mode | PID microcomputer control |
| Display | LCD display | 5.0-inch touch screen |
| Circulation Mode | Forced convection |
| Oscillation Mode | Rotary shaking |
| Curve Programming Setting | Fixed value control temperature velocity | Fixed value and multi-stage control temperature velocity |
| Speed Range | 30~300rpm |
| Speed Accuracy | ±1rpm |
| Swing Amplitude of The Plate | Φ26mm | Φ50mm | Φ26mm | Φ50mm | Φ26mm |
| Shaking Plate | 245*245mm | 566*363mm | 566*343mm | 566*363mm |
| Refrigerant | / | R290/75g |
| Max Capacity | Flask holder: 50ml*16, 100ml*9, 150ml*8, 200ml*6, 250ml*6, 500ml*3, 1000ml*2, 96-well plate*4 | Flask holder: 50ml*14, 100ml*7, 150ml*7, 200ml*5, 250ml*5, 500ml*3, 1000ml*1, 96-well plate*5 | Flask holder: 50ml*54, 100ml*33, 150ml*28, 200ml*23, 250ml*23, 500ml*18(BJPX-ST10/20), 500ml*15(BJPX-ST11), 1000ml*11, 2000ml*7(BJPX-ST10/20), 2000ml*6(BJPX-ST11), 3000ml*6(BJPX-ST10/20), 3000ml*4(BJPX-ST11), Tube rack*2, 96-well plate*10, clamping rod shaking plate*1 |
| Defrost Function | / | Automatic defrosting |
| Alarm | Over-temperature alarm, Power failure protection, Automatic stop upon opening door |
| Material | External material: Cold rolled steel plate spray; Internal material: 304 stainless steel |
| Power Supply | Standard: AC220V, 50Hz Optional: 110V, 50/60Hz(External transformer) |
| Consumption | 500W | 800W | 1000W |
| Standard Accessories | Flask holder: 50ml*6 or 100ml*6 or 150ml*5 or 200ml*5 or 250ml*4(Default) or 500ml*2 or 1000ml*1 | Flask holder: 50ml*20 or 100ml*20 or 150ml*16 or 200ml*16 or 250ml*12(Default) or 500ml*10 or 1000ml*6 or 2000ml*4 or 3000ml*4 |
| Optional Accessories | 96-well plate, Universal spring clamp | Tube rack, 96-well plate, Clamping rod shaking plate, Universal spring clamp |
| Internal Size(W*D*H)mm | 310*315*230 | 663*413*380 | 663*446*372 |
| External Size(W*D*H)mm | 365*510*440 | 719*700*590 | 719*780*590 |
| Package Size(W*D*H)mm | 485*630*600 | 485*630*600 | 840*830*730 | 840*830*730 | 840*910*730 |
| Net Weight(kg) | 31.5 | 38 | 64 | 90 | 89 |
| Gross Weight(kg) | 39 | 45.5 | 78 | 104 | 107 |
